26650 Cylindrical Cells

LiB.energys’ exclusive 26650 Cylindrical Cell Range to embrace change.

Cylindrical Cells Range

Available in both power and energy cell variants; utilising NMC, NCA, and LFP chemistries, our 26650 cell solutions possess a high level of climactic resilience with the discharge temperature of the cell range being between -20 – 60°C.

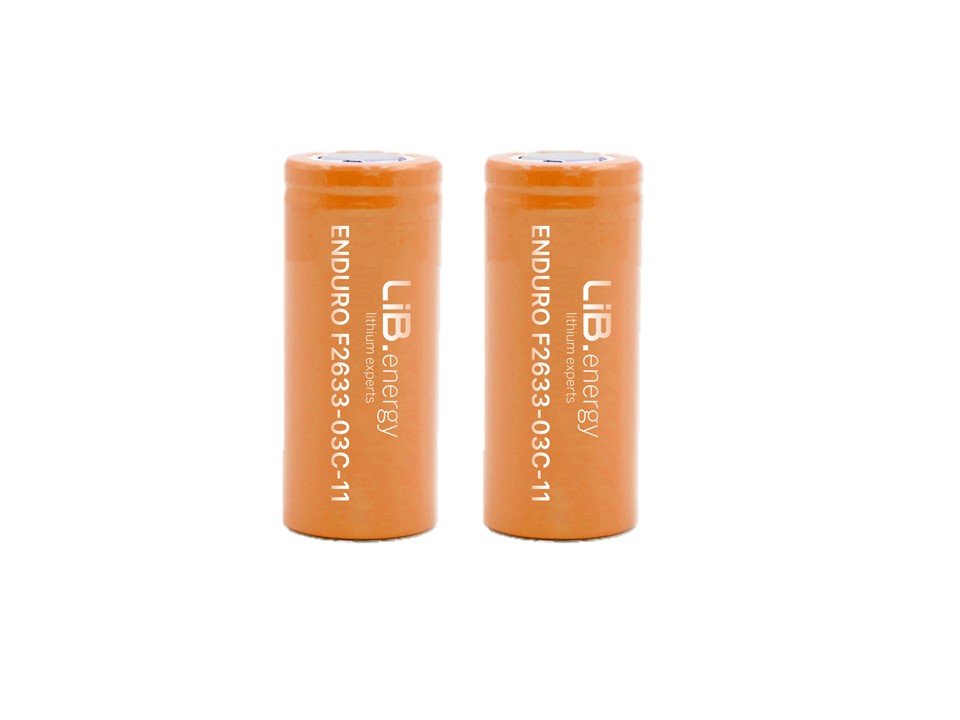

ENDURO F2633-03C-11
26650 Cylindrical Cells

ENDURO F2633-03C-11

Battery Capacity: 3300mAh
Weight: 90 gms.
Applications: Energy
Typical Voltage: 3.2

Request Callback:
If you need more help with the product, request callback and one of our technical expert will get back to you.

Product Inquiry :
For Information regarding product availability, pricing & shipment. Want to get in touch with Sales team?

Still not sure about product:
If this product or technology is not fit for your need our Center of Excellence and Technology team can help out with custom solutions. Request Custom Solution.

Applications Powered

Market Applications

Lithium Batteries for RV

Lithium Batteries for Trucks

Lithium Batteries for Tools

Quality Cylindrical Cells

Cycle life of 300-6000 cycles; coupled with our superior BMS system and plug and play functionality, our 26650 cells are intrinsically flexible and so can be utilised in a range of applications.

Top notch quality & safety testing at our manufacturing sites.

3.2V

Typical Voltage

LFP

Chemistry

10.6

Energy (Wh)

90

Weight in gms.

Energy

Application

1C/1C

C-Rate for Charge/Disch.

ENDURO F2633-03C-11
Energy V/S Cost
Our Modules are designed to deliver twice the power at high C-rate while maintaining high energy capacity at effective cost.
Storage/Shelf Life of Modules

Storage life comes with low-self discharge where LiB.energy modules last nearly 2 to 5 times longer in comparison to lead acid battery.

Environment Friendly

Our batteries are safe for environment where the are lead free and consists of no hazardous
material content.

Technical Data

Cell Specs.

3.2V

Typical Voltage

10.6

Energy (Wh)

LFP

Chemistry

≥2000

Cycle life 100% DoD

≥3000

Cycle life 80% DoD

1C/1C

C-Rate for Charge/Disch.

10A

Max. Cont. Disch. Current

3C

Discharge rate max. cont. Based on Capacity

0.67A

Typ. Discharge current

-20 C°

Discharge temp. (Min)

60C°

Discharge temp. (Max)

≤20 mΩ

Impedance AC 1kHz

1C

Charge Max C-Rate

3.35A

Max. Charge current

0.33A

Typ. charge current

0C°

Charge temp. (Min)

60C°

Charge temp. (Max)

Other Info.

26.40±0.1 mm

Diameter Max.

65.90±0.10 mm

Height Max.

90

Weight in gms.

Steel

Case Material

Second

Generation

Energy

Application
