Cylindrical Cells Range

Available in both power and energy cell variants; utilising NMC, NCA, and LFP chemistries, our 26650 cell solutions possess a high level of climactic resilience with the discharge temperature of the cell range being between -20 – 60°C.

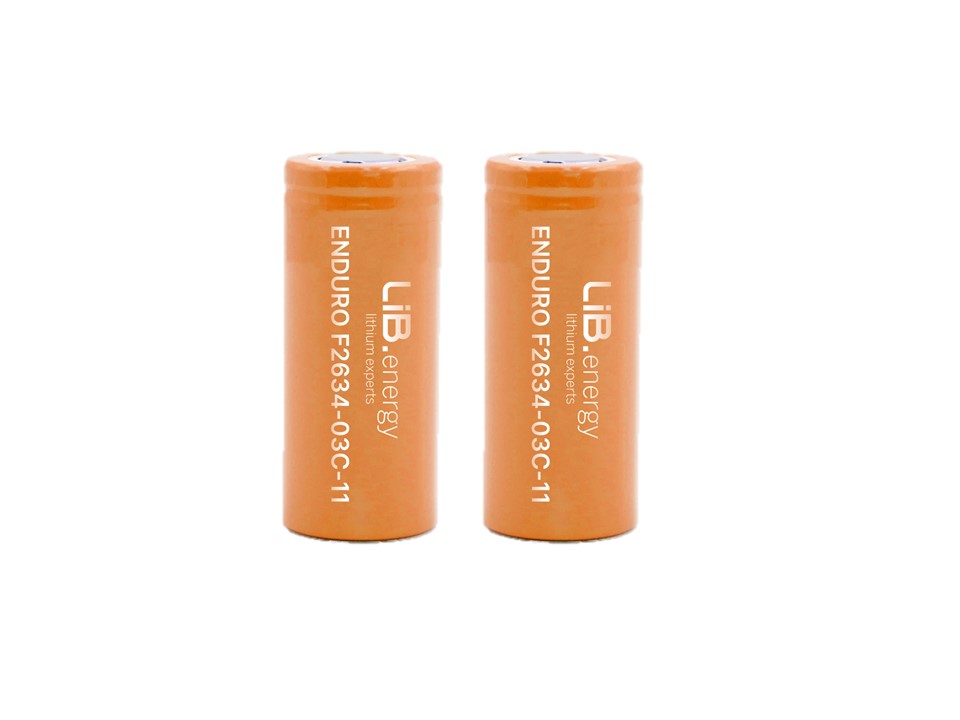

ENDURO F2634-03C-11
26650 Cylindrical Cells

ENDURO F2634-03C-11

Battery Capacity:
3400 mAh
Weight:
90g
Applications:
Energy
Typical Voltage:
3.2V
Request Callback:

If you need more help with the product, request callback and one of our technical expert will get back to you.

Request Callback
Product Inquiry:

For Information regarding product availability, pricing & shipment. Want to get in touch with Sales team?

Inquire Now
Still not sure about product:

If this product or technology is not fit for your need our Center of Excellence and Technology team can help out with custom solutions. Request Custom Solution.

Applications Powered

Market Applications

Two men and one woman camping out with a bonfire in front of a camping van.

LITHIUM BATTERIES FOR RV

Trucks lined up in a parking lot.

LITHIUM BATTERIES FOR TRUCKS

A young man holding a power tool for drilling a hole in a wall.

LITHIUM BATTERIES FOR TOOLS

Quality Cylindrical Cells

With our 18650 cells achieving a discharge voltage of 3.6V and overall discharge rating of 30Ah, as well as a high operating temperature of 70-80°C. Our 18650 cells are in stock and available now for mass order.

Top-notch Quality & Safety Testing at our Manufacturing Sites

3.2V
Typical Voltage
LFP
Chemistry
10.9
Energy (Wh)
90g
Weight
Energy
Application
1C/1C
C-Rate for Charge/Discharge
ENDURO F2634-03C-11

Energy V/S Cost

Our Modules are designed to deliver twice the power at a high C-rate while maintaining high energy capacity at an effective cost.

Storage/Shelf Life of Modules

Storage life comes with low self-discharge where LiB.energy modules last nearly 2 to 5 times longer in comparison to lead acid batteries.

Environment Friendly

Our batteries are safe for the environment where they are lead-free and consist of no hazardous material content.

Technical Data

Cell Specs

3.2V
Typical Voltage
10.9
Energy (Wh)
LFP
Chemistry
≥2000
Cycle life 100% DoD
≥3000
Cycle life 80% DoD
1C/1C
C-Rate for Charge/Disch.
10A
Max. Cont. Disch. Current
3C
Discharge rate max. cont. Based on Capacity
0.67A
Typ. Discharge current
-20C°
Discharge temp. (Min)
60C°
Discharge temp. (Max)
≤20 mΩ
Impedance AC 1kHz
1C
Charge Max C-Rate
3.35A
Max. Charge current
0.33A
Typ. charge current
0C°
Charge temp. (Min)
60C°
Charge temp. (Max)

Other Info

26.40 ± 0.1mm
Diameter Max
65.90 ± 0.10mm
Height Max
90g
Weight
Steel
Case Material
Third
Generation
Energy
Application
