Cylindrical Cells Range

Our 21700 range is 20% more energy-dense than our 18650 range. It possesses a high operating temperature and resilience to extremes. LiB.energy's in-house team crafts, tests, and certifies our range of bespoke solutions.

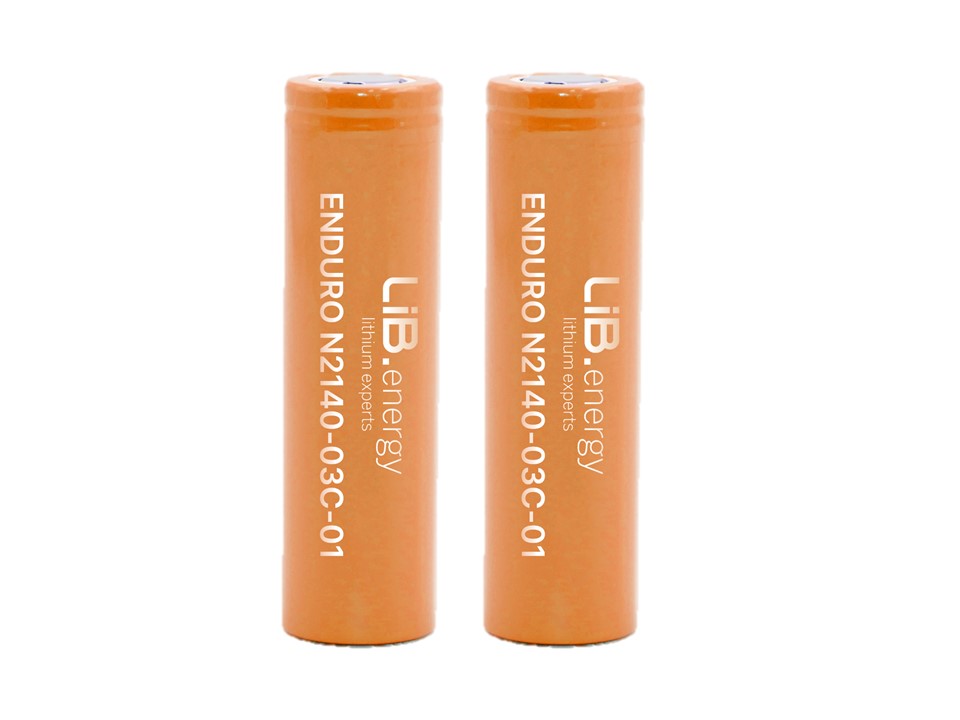

ENDURO N2140-03C-01
18650 Cylindrical Cells

ENDURO N2140-03C-01

Battery Capacity:
4000 mAh
Weight:
69g
Applications:
Energy
Typical Voltage:
3.6V
Request Callback:

If you need more help with the product, request callback and one of our technical expert will get back to you.

Request Callback
Product Inquiry:

For Information regarding product availability, pricing & shipment. Want to get in touch with Sales team?

Inquire Now
Still not sure about product:

If this product or technology is not fit for your need our Center of Excellence and Technology team can help out with custom solutions. Request Custom Solution.

Applications Powered

Market Applications

Two men and one woman camping out with a bonfire in front of a camping van.

LITHIUM BATTERIES FOR RV

Trucks lined up in a parking lot.

LITHIUM BATTERIES FOR TRUCKS

A young man holding a power tool for drilling a hole in a wall.

LITHIUM BATTERIES FOR TOOLS

Quality Cylindrical Cells

Premium and versatile, our 21700 cells are more energy-dense than our 18650 range and can be applied within a range of domestic and commercial applications; that range from household appliances to power commercial machinery and tools.

Higher Energy Density with Advanced Functionality

3.6V
Typical Voltage
NMC
Chemistry
14.4
Energy (Wh)
69g
Weight
Energy
Application
0.5C/1C
C-Rate for Charge/Discharge
ENDURO N2140-03C-01

Energy V/S Cost

Our Modules are designed to deliver twice the power at a high C-rate while maintaining high energy capacity at an effective cost.

Storage/Shelf Life of Modules

Storage life comes with low self-discharge where LiB.energy modules last nearly 2 to 5 times longer in comparison to lead acid batteries.

Environment Friendly

Our batteries are safe for the environment where they are lead-free and consist of no hazardous material content.

Technical Data

Cell Specs

3.6V
Typical Voltage
14.4
Energy (Wh)
NMC
Chemistry
≥500 (80% rest)
Cycle life 100% DoD
≥1000 (80% rest)
Cycle life 80% DoD
0.5C/1C
C-Rate for Charge/Disch.
12A
Max. Cont. Disch. Current
3C
Discharge rate max. cont. Based on Capacity
0.8A
Typ. Discharge current
-20C°
Discharge temp. (Min)
60C°
Discharge temp. (Max)
≤14 mΩ
Impedance AC 1kHz
0.5C
Charge Max C-Rate
2A
Max. Charge current
1A
Typ. charge current
0C°
Charge temp. (Min)
45C°
Charge temp. (Max)

Other Info

21.7 ± 0.2mm
Diameter Max
70.9 ± 0.2mm
Height Max
69g
Weight
Steel
Case Material
First
Generation
Energy
Application
