21700 Cylindrical Cells

LiB.energys’ exclusive 21700 Cylindrical Cell Range to embrace change.

Cylindrical Cells Range

Our 21700 range are 20% more energy-dense than our 18650 range,  posess a high operating temperature and resilience to extremes.
LiB.energys’ inhouse teams craft, test and certify our range of bespoke solutions.
21700 Cylindrical Cells

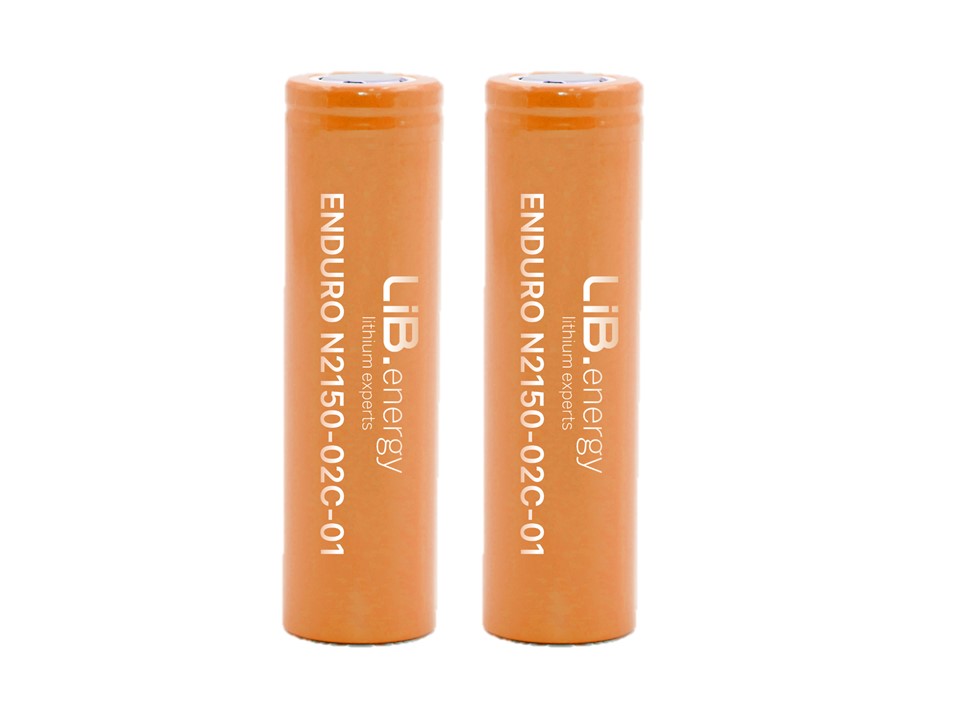

ENDURO N2150-02C-01

Battery Capacity: 5000mAh
Weight: 73 gms.
Applications: Cycle Life
Typical Voltage: 3.6

Request Callback:
If you need more help with the product, request callback and one of our technical expert will get back to you.

Product Inquiry :
For Information regarding product availability, pricing & shipment. Want to get in touch with Sales team?

Still not sure about product:
If this product or technology is not fit for your need our Center of Excellence and Technology team can help out with custom solutions. Request Custom Solution.

Applications Powered

Market Applications

Lithium Batteries for RV

Lithium Batteries for Trucks

Lithium Batteries for Tools

Quality Cylindrical Cells

Premium and versatile, our 21700 cells are more energy-dense than our 18650 range and can be applied within a range of domestic and commercial applications; that range from household appliances to power commercial machinery and tools.

Higher Energy Density with Advanced Functionality

3.6V

Typical Voltage

NCA

Chemistry

18.0

Energy (Wh)

73

Weight in gms.

Energy

Application

0.7C/1C

C-Rate for Charge/Disch.

Energy V/S Cost
Our Modules are designed to deliver twice the power at high C-rate while maintaining high energy capacity at effective cost.
Storage/Shelf Life of Modules

Storage life comes with low-self discharge where LiB.energy modules last nearly 2 to 5 times longer in comparison to lead acid battery.

Environment Friendly

Our batteries are safe for environment where the are lead free and consists of no hazardous
material content.

Technical Data

Cell Specs.

3.6V

Typical Voltage

18.0

Energy (Wh)

NCA

Chemistry

≥800 (80% rest)

Cycle life 100% DoD

≥1000 (80% rest)

Cycle life 80% DoD

0.7C/1C

C-Rate for Charge/Disch.

9.6A

Max. Cont. Disch. Current

2C

Discharge rate max. cont. Based on Capacity

4A

Typ. Discharge current

-20 C°

Discharge temp. (Min)

60 C°

Discharge temp. (Max)

≤14.5 mΩ

Impedance AC 1kHz

0.8C

Charge Max C-Rate

3.36A

Max. Charge current

1.44A

Typ. charge current

0C°

Charge temp. (Min)

45C°

Charge temp. (Max)

Other Info.

21.7±0.2 mm

Diameter Max.

70.9±0.2 mm

Height Max.

73

Weight in gms.

Steel

Case Material

Second

Generation

Energy

Application
