18650 Cylindrical Cells

LiB.energys’ exclusive 18650 Cylindrical Cell Range to embrace change.

Cylindrical Cells Range

With existing stock available now from our warehouses; our 18650 cells have the ability to act as a replacement and one of the best alternative for available products in the market; our 18650 cell solutions possess a high capacity and discharge capability.

18650 Cylindrical Cells

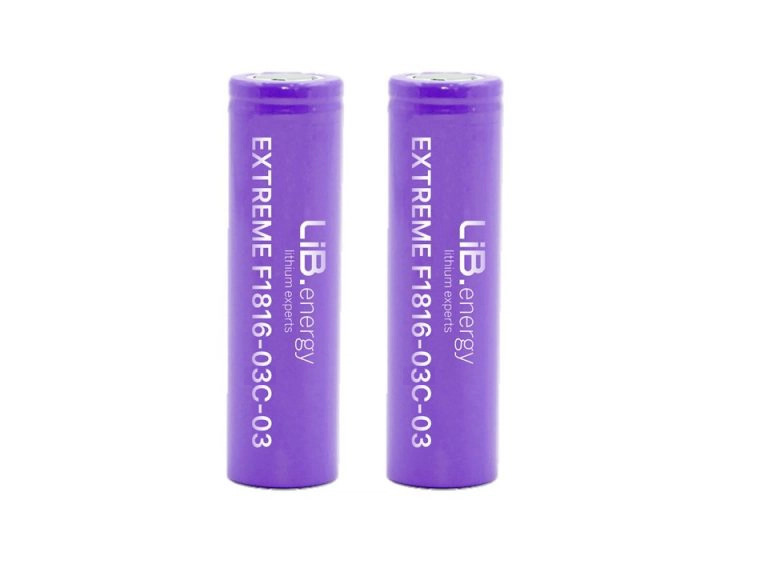

EXTREME F1816-03C-03

Battery Capacity: 1600mAh
Weight: 39.5 gms.
Applications: Energy
Typical Voltage: 3.2

Request Callback:
If you need more help with the product, request callback and one of our technical expert will get back to you.

Product Inquiry :
For Information regarding product availability, pricing & shipment. Want to get in touch with Sales team?

Still not sure about product:
If this product or technology is not fit for your need our Center of Excellence and Technology team can help out with custom solutions. Request Custom Solution.

Applications Powered

Market Applications

Lithium Batteries for RV

Lithium Batteries for Trucks

Lithium Batteries for Tools

Quality Cylindrical Cells

With our 18650 cells achieving a discharge voltage of 3.6V and overall discharge rating of 30Ah, as well as a high operating temperature of 70-80°C. Our 18650 cells are in stock and available now for mass order.

Top notch quality & safety testing at our manufacturing sites.

3.2V

Typical Voltage

LFP

Chemistry

5.1

Energy (Wh)

39.5

Weight in gms.

Energy

Application

1C/1C

C-Rate for Charge/Disch.

Energy V/S Cost
Our Modules are designed to deliver twice the power at high C-rate while maintaining high energy capacity at effective cost.
Storage/Shelf Life of Modules

Storage life comes with low-self discharge where LiB.energy modules last nearly 2 to 5 times longer in comparison to lead acid battery.

Environment Friendly

Our batteries are safe for environment where the are lead free and consists of no hazardous
material content.

Technical Data

Cell Specs.

3.2V

Typical Voltage

5.1

Energy (Wh)

LFP

Chemistry

2000 (80% Rest)

Cycle life 100% DoD

4000

Cycle life 80% DoD

1C/1C

C-Rate for Charge/Disch.

3.2A

Max. Cont. Disch. Current

2C

Discharge rate max. cont. Based on Capacity

1.6A

Typ. Discharge current

-20 C°

Discharge temp. (Min)

70C°

Discharge temp. (Max)

≤40 mΩ

Impedance AC 1kHz

1C

Charge Max C-Rate

1.6A

Max. Charge current

0.8A

Typ. charge current

0C°

Charge temp. (Min)

60C°

Charge temp. (Max)

Other Info.

18.45±0.1 mm

Diameter Max.

65.2±0.3 mm

Height Max.

39.5

Weight in gms.

Aluminium

Case Material

First

Generation

Energy

Application
