Cylindrical Cells Range

With existing stock available now from our warehouses; our 18650 cells have the ability to act as a replacement and one of the best alternative for available products in the market; our 18650 cell solutions possess a high capacity and discharge capability. Embrace Change, Embrace LiB.

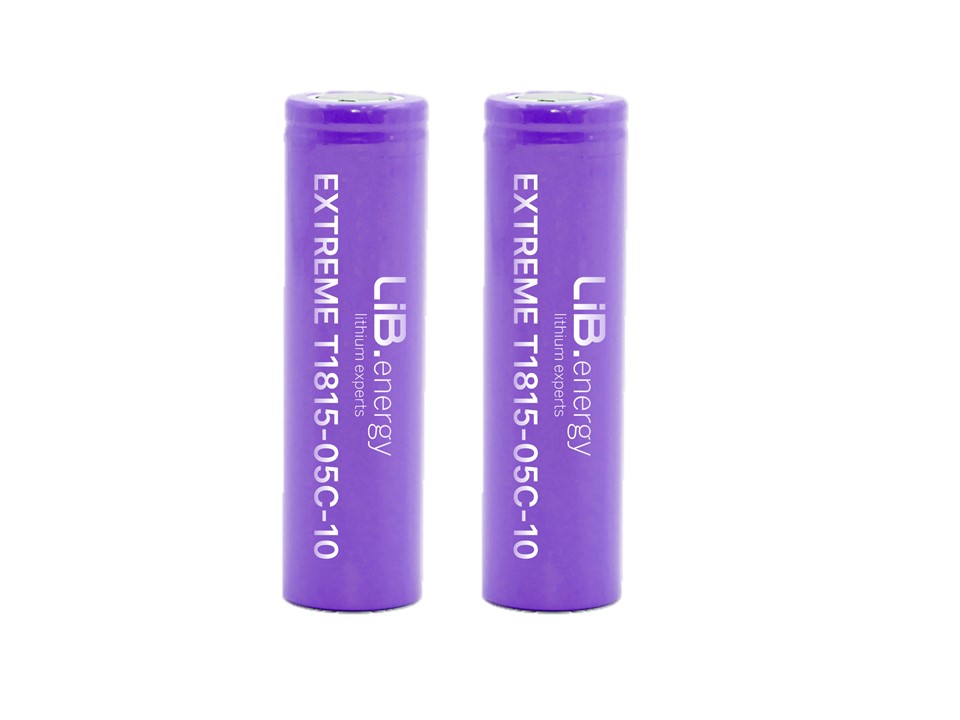

EXTREME T1815-05C-10
18650 Cylindrical Cells

EXTREME T1815-05C-10

Battery Capacity:
1500 mAh
Weight:
43g
Applications:
Extreme Temp.
Typical Voltage:
2.4
Request Callback:

If you need more help with the product, request callback and one of our technical expert will get back to you.

Request Callback
Product Inquiry:

For Information regarding product availability, pricing & shipment. Want to get in touch with Sales team?

Inquire Now
Still not sure about product:

If this product or technology is not fit for your need our Center of Excellence and Technology team can help out with custom solutions. Request Custom Solution.

Applications Powered

Market Applications

Two men and one woman camping out with a bonfire in front of a camping van.

LITHIUM BATTERIES FOR RV

Trucks lined up in a parking lot.

LITHIUM BATTERIES FOR TRUCKS

A young man holding a power tool for drilling a hole in a wall.

LITHIUM BATTERIES FOR TOOLS

Quality Cylindrical Cells

With our 18650 cells achieving a discharge voltage of 3.6V and overall discharge rating of 30Ah, as well as a high operating temperature of 70-80°C. Our 18650 cells are in stock and available now for mass order.

Top-notch quality & safety testing at our manufacturing sites

2.4
Typical Voltage
LTO
Chemistry
3.6
Energy (Wh)
43g
Weight
Extreme Temp.
Application
1C/1C
C-Rate for Charge/Discharge
EXTREME T1815-05C-10

Energy V/S Cost

Our Modules are designed to deliver twice the power at a high C-rate while maintaining high energy capacity at an effective cost.

Storage/Shelf Life of Modules

Storage life comes with low self-discharge where LiB.energy modules last nearly 2 to 5 times longer in comparison to lead acid batteries.

Environment Friendly

Our batteries are safe for the environment where they are lead-free and consist of no hazardous material content.

Technical Data

Cell Specs

2.4
Typical Voltage
3.6
Energy (Wh)
LTO
Chemistry
≥10000 (80% Rest)
Cycle life 100% DoD
≥15000
Cycle life 80% DoD
1C/1C
C-Rate for Charge/Disch.
7.5A
Max. Cont. Disch. Current
5C
Discharge rate max. cont. Based on Capacity
4.5A
Typ. Discharge current
-40C°
Discharge temp. (Min)
60C°
Discharge temp. (Max)
≤18 mΩ
Impedance AC 1kHz
3C
Charge Max C-Rate
4.5A
Max. Charge current
0.7A
Typ. charge current
-40C°
Charge temp. (Min)
60C°
Charge temp. (Max)

Other Info

18.4 ± 0.1mm
Diameter Max
65.3 ± 0.1mm
Height Max
43g
Weight
Steel
Case Material
Second
Generation
Extreme Temp.
Application
