Irresistible Power Block

Low-cost Lead Acid battery replacement to feed your New-age devices. Our batteries are set to reduce operating costs for you and the total cost of ownership. LiB.energy precisely develops the battery which requires less charging time and best in the industry self-discharge rate.

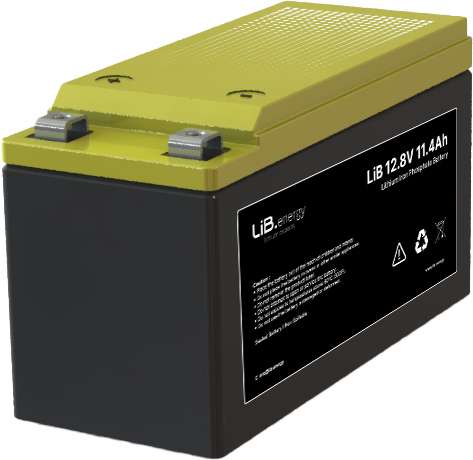

LiB 12.8V 11.4Ah
12.8V Battery Modules

LiB 12.8V 11.4Ah

Lithium Iron Phosphate Battery
4S3P
Cell Configuration -
26650
Nominal Voltage:
12.8V
Capacity:
11.4Ah
Energy:
145Wh
Request Callback:

If you need more help with the product, request callback and one of our technical expert will get back to you.

Request Callback
Product Inquiry:

For Information regarding product availability, pricing & shipment. Want to get in touch with Sales team?

Inquire Now
Still not sure about product:

If this product or technology is not fit for your need our Center of Excellence and Technology team can help out with custom solutions. Request Custom Solution.

Applications Powered

Market Applications

LITHIUM BATTERIES FOR SCOOTER

LITHIUM BATTERIES FOR E-BIKE

LITHIUM BATTERIES FOR CARS

Two men and one woman camping out with a bonfire in front of a camping van.

LITHIUM BATTERIES FOR RV

Trucks lined up in a parking lot.

LITHIUM BATTERIES FOR TRUCKS

A young man holding a power tool for drilling a hole in a wall.

LITHIUM BATTERIES FOR TOOLS

Durability. Power. Performance.

Reduce ownership cost by nearly 50% than other lithium products across the market. Snap-fit and Compact Design which is lightweight, but on the other side densely powered. Safe and Reliable LiB.energy batteries are highly safe & reliable compared to other market alternatives.

LiB.energy Battery Modules Maintains a Strong Record of Low Discharge Compared to Peers

12.8V
Battery Voltage
11.4Ah
Module Capacity
4S3P
Module Cell Configuration
26650
Powering Cell
35A
Max. Continuous Charge
1.4kg ~ (1420g)
Weight
LiB 12.8V 11.4Ah

Energy V/S Cost

Our Modules are designed to deliver twice the power at a high C-rate while maintaining high energy capacity at an effective cost.

Storage/Shelf Life of Modules

Storage life comes with low self-discharge where LiB.energy modules last nearly 2 to 5 times longer in comparison to lead acid batteries.

Environment Friendly

Our batteries are safe for the environment where they are lead-free and consist of no hazardous material content.

Durability. Power. Performance.

Lightweight Lithium-ion batteries with high power and low maintenance cost are a perfect replacement for lead-acid batteries to boost your revenue. Dramatically reduce the weight of products and increase the density of batteries. LiB.energy's battery chemistry is powered in a manner that extreme conditions do not affect battery.

Fast Charge Compatible

Powering the fast charge batteries to last longer than others on a single charge.

Low Discharge

LiB.energy maintains a strong record of low discharge compared to other products.

Fast Charge Compatible

Powering the fast charge batteries to last longer than others on a single charge.

Fast Charge Compatible

Powering the fast charge batteries to last longer than others on a single charge.

Modern Engineering In-Action

Next Gen Technology for New-age Products

More Capacity with fluent flow making new age devices work with zero downtime. Moreover, our batteries are designed in a manner that there’s a less self discharge rate.

LiB.energy modules are crafted to survive extreme temp. with less degradation in quality compared to others.

FIRST PRIORITY SAFETY

Superior abuse tolerance when compared to lead acid and other lithium ion batteries. Highly stable chemistry to protect your devices.

POWERED BY iSMART BMS

Batteries are internally monitored by Battery Management System for better life of modules and reduce cost of ownership.

GERMAN ENGINEERED

With our Engineering team in Germany our batteries are crafted in a manner that they require less maintenance compared to peers.

Module Technical Data

Basic Info

LFP
Cell Technology
26650
Cell Type
12.8V
Module Voltage
11.4Ah
Capacity
4S3P
Cell Configurations
1.4kg ~ (1420g)
Weight
35A
Max. Cont. Charge
Max. Cont. Discharge

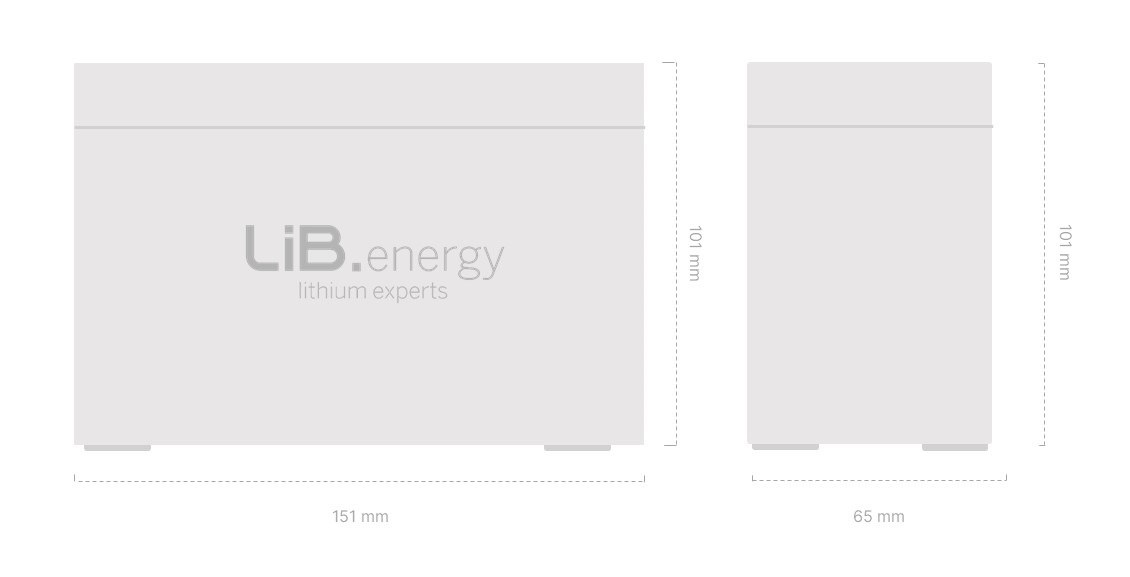

Dimensions

151mm
Length
65mm
Width
101mm
Height

Certifications

UL Certifications
Available on Request
CE Certifications
Available on Request
UN38.3 Certification
Available
Product Warranty
1 Year
ISO Certifications
Available on Request

Module Technical Data

Basic Info

LFP
Cell Technology
12.8V
Module Voltage
14.4V
Charge Voltage Max.
11.4Ah
Capacity
145Wh
Energy
35
Max. Continuous Load Current
50A for 10 sec
Max. Peak Load (Pulse)
450W
Max. Cont. Energy Output
600W Pulse
Max. Peak Energy 10sec
30A
Max. Charging Current
typ. 28mΩ
Pack ESR
ABS Housing
Housing Material

Cycles

>2000
80% DoD 0.5C/0.5C
>1200
100% DoD 0.5C/0.5C

Temp.

-20º up to 60ºC
Operating Temp Discharging
0º up to 45ºC
Operating Temp Charging

Dimensions

151mm
Length
65mm
Width
101mm
Height

Certifications

UL Certifications
Available on Request
CE Certifications
Available on Request
UN38.3 Certification
Available
Product Warranty
1 Year
ISO Certifications
Available on Request

BMS Technical Data

BMS Info

80V
Max. System Voltage
LiB.BMS.4S-80V-45A-K
Battery Management System
100mA / string
Balancing
On Board FET-switch
Short Circuit Protection
eFuse
Secondary Protection
T.B.D
Communication Interface
Internal FET-switch
Overload Disconnect
Internal FET-switch
Overcharge Disconnect
Internal FET-switch
Overdischarged Disconnect
Not Available
Configuration Tool
Yes / Dual Power Pole
Symetrical Power connect
Max 10
Parallel Pack support
Yes
Hot Swap Function
Flat 6.3mm dual / 4mm Screw
Power Connector
